CGOLDENWALL 12mm Ultra-Thin Safety Light Curtain - Infrared Sensor Safety Grating for Punching Machines - 16 Beams, 10mm Pitch, 150mm Sensing Height - Photoelectric Protector for Industrial Equipment Safety (Workshop, Factory, CNC Machine Protection)

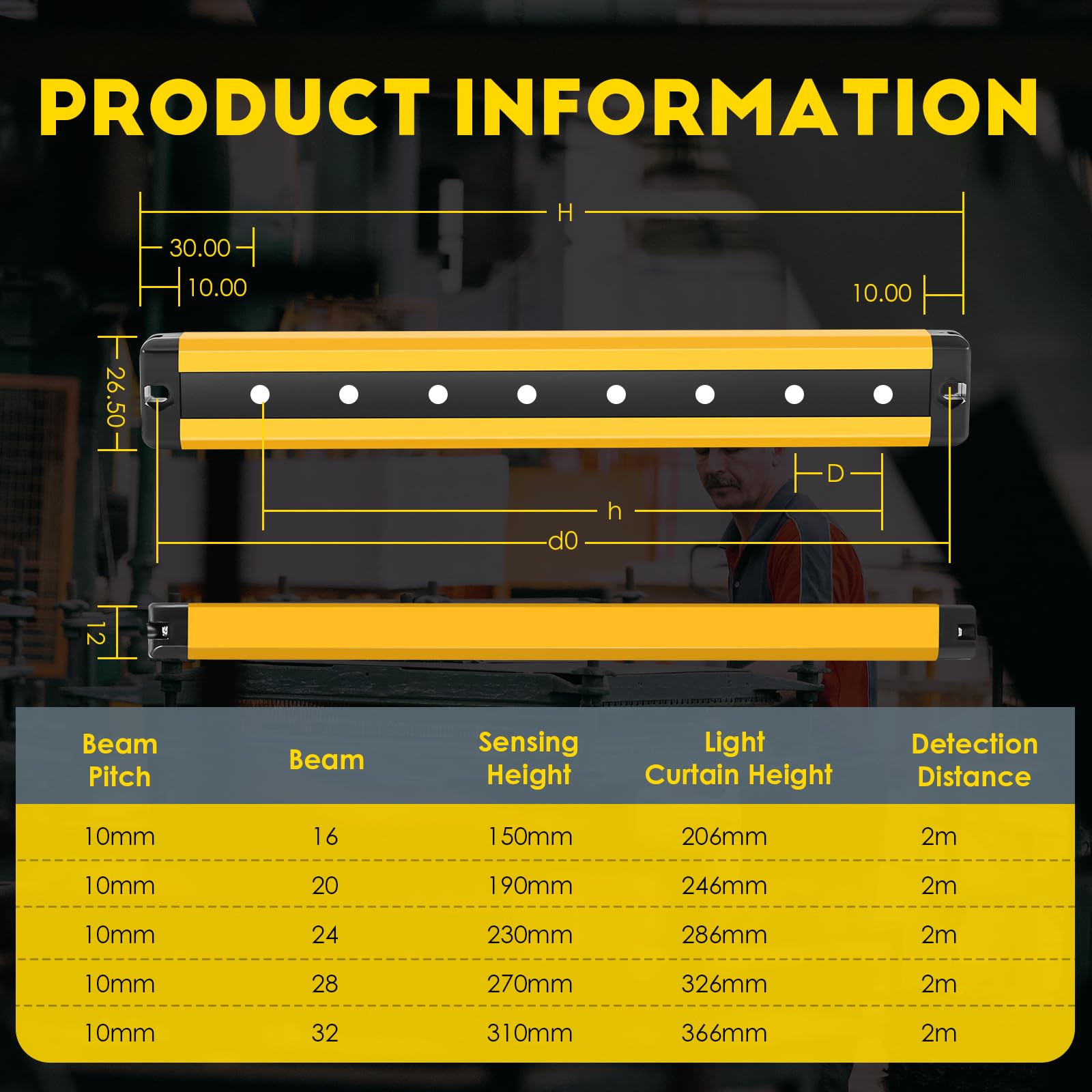

Beam pitch: 10mm (0.39inch) Number of Beams: 16/20/24/28/32 Total height: 210mm/250mm/290mm/330mm/370mm (Can be customized) Protection height: 150mm/190mm/230mm/230mm/310mm (Can be customized) Protection distance: 2M (78.7 inch) Supply Voltage: 12V-24V for the grating, 90-220V for the controller Current consumption: 200mA Response time: 10ms Transmission mode: Relay or transistor Signal output mode PNP/NPN Operating Humidity: 35 to 85% RH Indication: LED (Red: Power indicator, Green: Action indicator) Object detection: Opaque body, Wrist/body detection Resistance to ambient light: Incandescent 3000Lx , sunlight: 10000Lx Protection class: LP65 Security Level: IEC61496-1/2

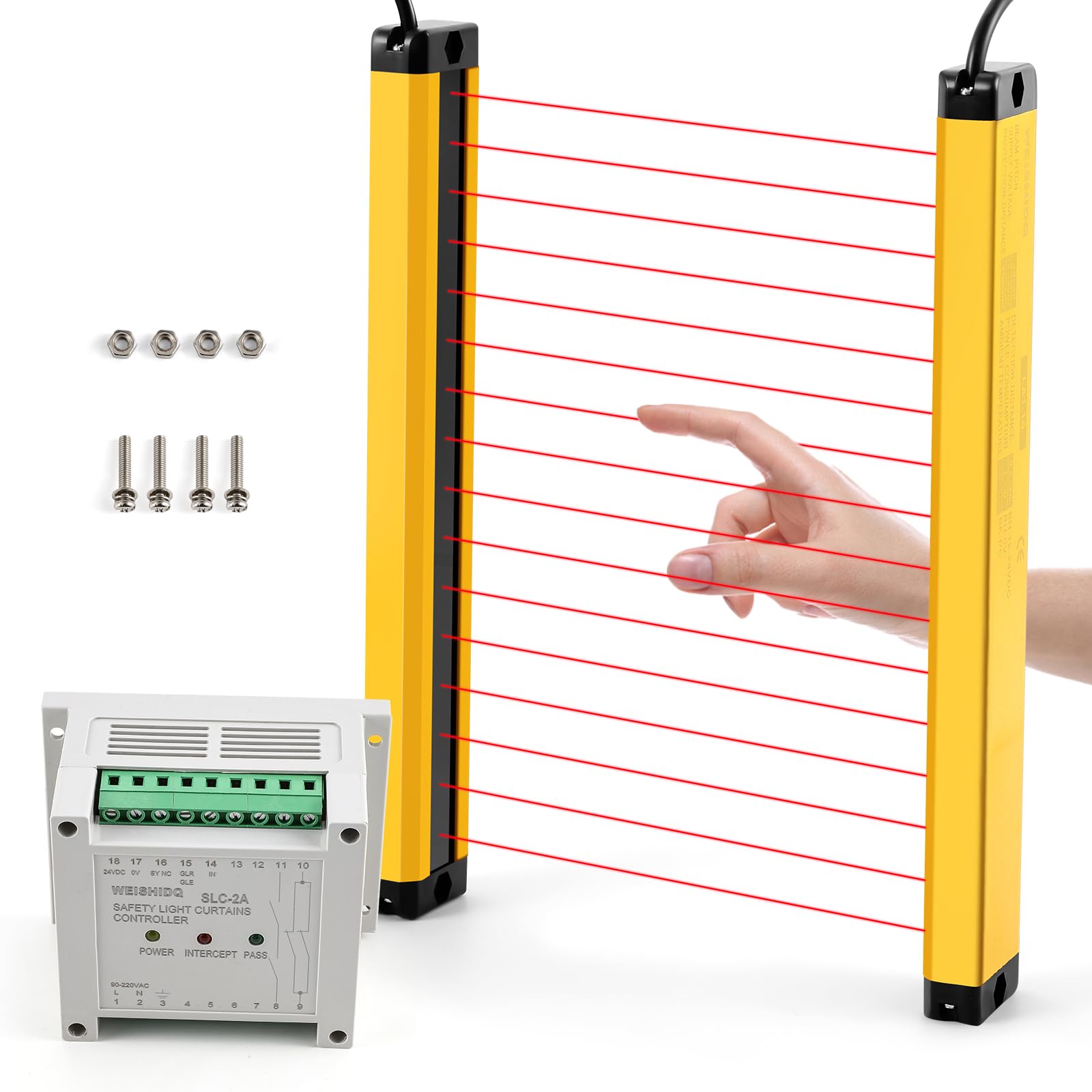

Ultra-thin Safety Light Curtains safety protection sensor light

1.Super anti-electromagnetic radiation interference to deal with electromagnetic radiation in a complex environment;

2. Automatic adjustment between 0.2 and 2 meters ,10mm, 20mm pitch, protection height from 100mm to 620mm height selection

3. 12mm ultra-thin body design space is small, suitable for automation equipment, etc.

4.light curtain protection device emits infrared light, resulting in a protective screens. When the light curtain is blocked, the device emits a blackout signal and control potentially dangerous machinery and equipment stops working, or an alarm signal, control and alarm devices to achieve the purpose of security.
