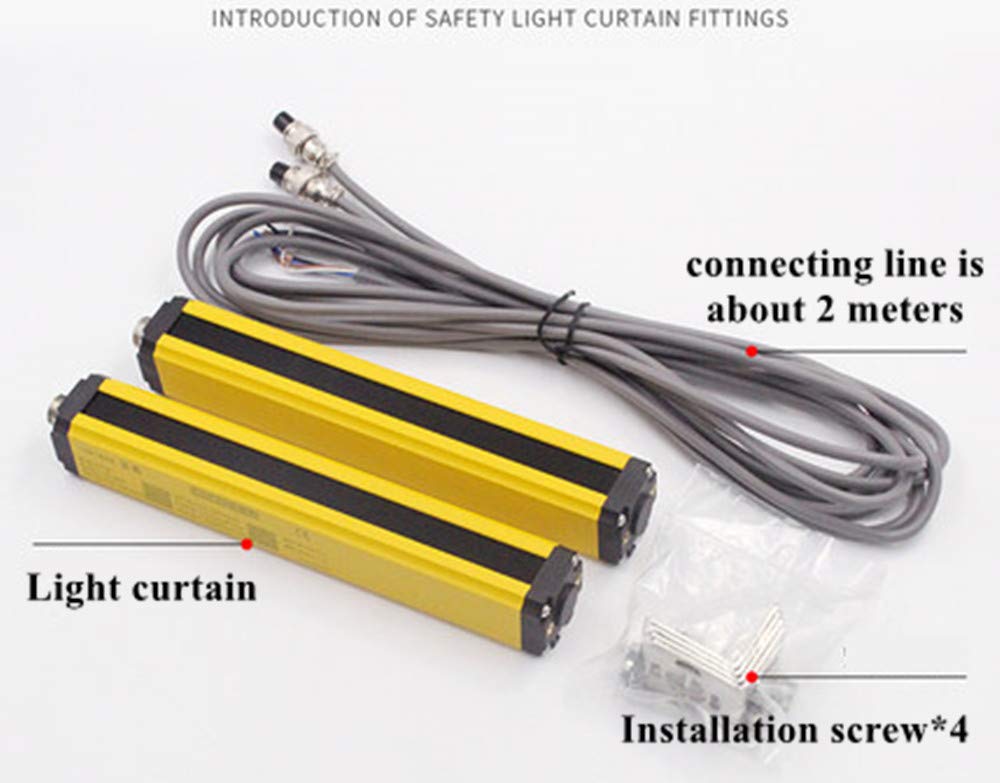

CGOLDENWALL Safety Light Curtain Sensor - 6 Beam Infrared Protection System with 40mm Beam Pitch for Industrial Machinery Safety, Hand Protection & Punch Press Guard | Perfect for Factory Automation, CNC Machines & Equipment Safety Barriers

it is suitable for paper machinery, leather machinery, woodworking machinery, injection molding machine, forging machine, punching machine tools, such as security monitoring, can be reliably protect the safety of persons or objects. Light curtain protection device emits infrared light, resulting in a protective screens. When the light curtain is blocked, the device emits a blackout signal and control potentially dangerous machinery and equipment stops working, or an alarm signal, control and alarm devices to achieve the purpose of security Beam pitch: 40mm (1.57inch) Beams: 4/6/8/10/12/14/16/18/20 Beams of light Total height: 180/270/350/430/510/590/670/750/830mm Protection height: 120/200/280/360/440/520/600/680/760mm Protection distance: 5M (196.8 inch) Supply Voltage: 12V-24V for the grating, 90-220V for the controller Current consumption: 200mA Response time: 10ms Transmission mode: Relay or transistor Signal output mode PNP/NPN Operating Humidity: 35 to 85% RH Indication: LED (Red: Power indicator, Green: Action indicator) Object detection: Opaque body, Wrist/body detection Resistance to ambient light: Incandescent 3000Lx , sunlight: 10000Lx Protection class: LP65 Security Level: IEC61496-1/2 40mm Safety Light Curtains 40mm Safety Light Curtains 40mm Safety Light Curtains 20mm Safety Light Curtains 20mm Safety Light Curtains 10mm Safety Light Curtains Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — — 4.4 out of 5 stars 24 5.0 out of 5 stars 3 5.0 out of 5 stars 1 5.0 out of 5 stars 1 Price $189.00$189.00 $209.00$209.00 $184.90$184.90 $219.00$219.00 $219.00$219.00 $329.00$329.00 Beam pitch 40mm (1.57inch) 40mm (1.57inch) 40mm (1.57inch) 20mm (0.79inch) 20mm (0.79inch) 10mm (0.39inch) Beams: 6 8 10 14 8 16 Total height: 270mm (10.6inch) 350mm (13.8inch) 430mm (16.9inch) 320mm (12.6inch) 200mm (7.87inch) 167.5mm (6.6inch) Protection height 200mm (7.87inch) 280mm(11inch) 360mm (14.2inch) 260mm (10.2inch) 140mm (5.5inch) 150mm (5.9inch) Protection distance : 5M (196.8 inch) 5M (196.8 inch) 5M (196.8 inch) 5M (196.8 inch) 5M (196.8 inch) 5M (196.8 inch) Detection type Wrist/human detection Wrist/human detection Wrist/human detection Palm detection Palm detection Finger detection Can be customized ✓ ✓ ✓ ✓ ✓ ✓ CE Approved ✓ ✓ ✓ ✓ ✓ ✓ Available options 180mm to 3230mm height available 180mm to 3230mm height available 180mm to 3230mm height available 120mm to 1640mm height available 120mm to 1640mm height available 100mm to 620mm height available

One Year Warranty CGOLDENWALL Safety Light Curtain Sensor Light Screen Sensor Sensing height is Customizable,And you can enjoy One Year Warranty and all life technical support. If there is anything we can help with, feel free to contact us.

Fast Response Capability<20ms and Meets International Electrotechnical Society IEC61496-1/2 standard, designed according to European standards, and has passed CE certification.

UsageLight curtain protection device emits infrared light, resulting in a protective screens, when the light curtain is blocked, the device emits a blackout signal, control potentially dangerous machinery and equipment stops working, or an alarm signal, control and alarm devices to achieve the purpose of security.

Application It is suitable for paper machinery, leather machinery, woodworking machinery, injection molding machine, forging machine, punching machine tools, such as security monitoring, can be reliably protect the safety of persons or objects.
